منزل المنتجاتموصل العرض LVDS

موصلات LVDS الملعب 2 مم ، WTB دوبونت موصل مزدوج صف سلك الإسكان مع 3 مطبات

موصلات LVDS الملعب 2 مم ، WTB دوبونت موصل مزدوج صف سلك الإسكان مع 3 مطبات

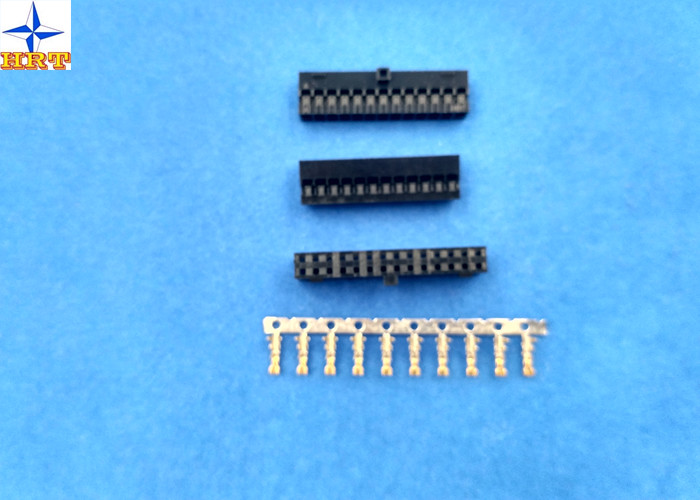

    • Pitch 2mm LVDS Connectors , WTB Dupont Connector Double Row Wire Housing With 3 Bumps
    • Pitch 2mm LVDS Connectors , WTB Dupont Connector Double Row Wire Housing With 3 Bumps
    • Pitch 2mm LVDS Connectors , WTB Dupont Connector Double Row Wire Housing With 3 Bumps
  • Pitch 2mm LVDS Connectors , WTB Dupont Connector Double Row Wire Housing With 3 Bumps

    تفاصيل المنتج:

    Place of Origin: Dongguan, China(mainland)
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2016H

    شروط الدفع والشحن:

    Minimum Order Quantity: 5000 pcs
    الأسعار: negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 500 K pcs per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    محطات مناسبة: سلسلة A2015T رأس دبوس مناسب: رأس دبوس سلسلة A2016
    قفل التزاوج للجزء: بدون مجموعة الأسلاك: AWG 26 # إلى 30 #
    القابلية للاشتعال: UL94V-0 رقم الصف: مزدوج
    تسليط الضوء:

    موصل نمط التجعيد

    ,

    موصلات LVDS

    ,

    موصلات LVDS الملعب 2 مم



    2mm LVDS Connectors , Connector Wire To Board Double Row Wire Housing With Bump



    1, The specification of the product like information of size, electrical and mechanical properties.



     Basic size information
    Color Black
    Pitch

    2.00mm

    Material PBT(standard)
    Nose No. of A2016H-2XNP 0
    Nose No. of A2016H-N-2XNP 1
    Nose No. of A2016H-3N-2XNP 3
    Wire Termination Method Crimping
    Circuits 4 to 60 pins
    Wire Insulation Diameter  1.30mm Max.
    Mounting side Standard on-Board
    Terminals material Phosphor bronze; gold-flash finish

                                  Electrical properties
    Current Rating 2A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 1000V AC/minute

                                  Mechanical properties
    Operating Temperature range -25℃ to 85 ℃

                               Other information please kindly check the following picture.



    2, Related drawing and report



    We wish our engineering drawing and report can help you to get the right parts from us easily.





                                                            without nose type

    موصلات LVDS الملعب 2 مم ، WTB دوبونت موصل مزدوج صف سلك الإسكان مع 3 مطبات





                                                                         with one nose type

    موصلات LVDS الملعب 2 مم ، WTB دوبونت موصل مزدوج صف سلك الإسكان مع 3 مطبات



                                                                                with 3 nose type

    موصلات LVDS الملعب 2 مم ، WTB دوبونت موصل مزدوج صف سلك الإسكان مع 3 مطبات

    Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 10mΩ (Max.)



    Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial Circuits At Initial Circuits At Initial
    Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
    Single 0.20 0.05 2x15 6.00 1.50 2x29 11.60 2.90
    2x02 0.80 0.20 2x16 6.40 1.60 2x30 12.00 3.00
    2x03 1.20 0.30 2x17 6.80 1.70 2x31 12.40 3.10
    2x04 1.60 0.40 2x18 7.20 1.80 2x32 12.80 3.20
    2x05 2.00 0.50 2x19 7.60 1.90 2x33 13.20 3.30
    2x06 2.40 0.60 2x20 8.00 2.00 2x34 13.60 3.40
    2x07 2.80 0.70 2x21 8.40 2.10 2x35 14.00 3.50
    2x08 3.20 0.80 2x22 8.80 2.20 2x36 14.40 3.60
    2x09 3.60 0.90 2x23 9.20 2.30 2x37 14.80 3.70
    2x10 4.00 1.00 2x24 9.60 2.40 2x38 15.20 3.80
    2x11 4.40 1.10 2x25 10.00 2.50 2x39 15.60 3.90
    2x12 4.80 1.20 2x26 10.40 2.60 2x40 16.00 4.00
    2x13 5.20 1.30 2x27 10.80 2.70
    2x14 5.60 1.40 2x28 11.20 2.80





    3,  FAQ

    Q1: Are you manufacturer or trading company?
    A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.

    Q2: How to control the quality of your products?
    A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.

    Q3: Where is your factory located, and how can we visit there?
    A: Our company is located in Dongguan city, Guangdong Province, China. It is close to shenzhen

    Q4: How can I get the sample?
    A: The sample is for free,but the transportation fee will be beared by customers.

    Q5: What are your products applied to?
    A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.
