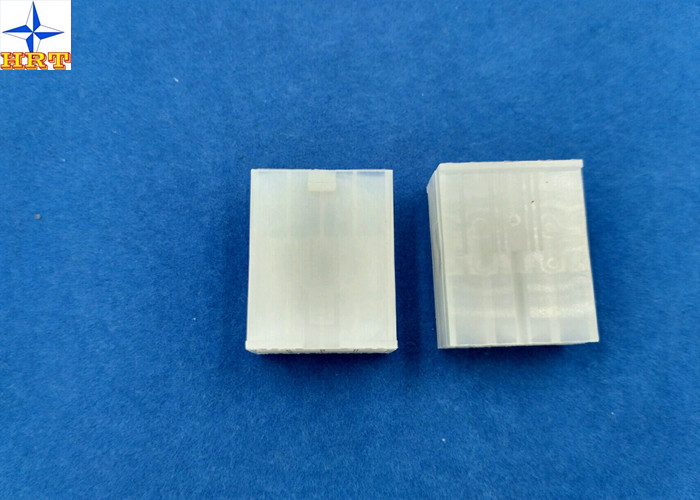

4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears

4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears

    • 4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears
    • 4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears
    • 4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears
  • 4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears

    تفاصيل المنتج:

    Place of Origin: Dongguan, China(mainland)
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C4255HMA-2XNP

    شروط الدفع والشحن:

    Minimum Order Quantity: 5000pcs
    الأسعار: negotiated
    Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28000K pcs per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Category: Power cable connector Row No.: Dual or double
    Locking structure: With Wire range: AWG26# to 22#
    Application: Power, wire to wire Matched housing: C2505HF series dual row
    تسليط الضوء:

    Connector Crimp Terminal,Board In Connector

    ,

    Board In Connector

    1, Detailed specification of product:


           1. Basic information:

    • Color: White
    • Housing Material: Nylon66
    • Flammability: 94V-0/2
    • Pitch:4.20 mm
    • Circuits: 2pins to 24pins
    • Insulation O.D.: 3.10mm
    • Terminal materials: Phosphor bronze/Brass
    • Finish terminal: Tin-plated type
    • Matched terminal: C4255M series terminal


           2. Electrical characteristic:

    • Current Rating: 9A AC DC
    • Voltage Rating: 600V AC, DC
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000mΩ
    • Withstanding Voltage:  1500V AC/minute


          3. Mechanical characteristic:

    • ​​Temperature Range:-25°C ~+85°C
    • Terminal Insertion Force: 1.50kgf (Max.)
    • Terminal/Housing Retention Force: 3.00kgf (Min.)
    • Pin Retention Force: 3.00kgf (Min.)
    • Latch Yield Strength:7.0kgf (Min.)
    • Panel Mount Retention Force: 16.0kgf (Min.)


                          Other detailed data please check the pictures as below.


     2, Related engineering drawing and testing report

    The attached picture is our standard engineering drawing and report for your reference, it will help you to
    know our product feature, then you can choose the right models.

    4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears        4.2mm Pitch Mini-Fit Plug Housing, Dual Row Wire to Wire Connector with Panel Mounting Ears


    Mechanical Performance


    Test DescriptionProcedureRequirement
    5-1Actuator Insertion & Withdrawal ForceInsert and withdraw connectors at the speed rate of 25±3mm / minute.Refer to paragraph 7
    5-2Crimping Pull Out ForceFix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)AWG#1411.0kgf (Min)
    AWG#1610.0kgf (Min)
    AWG#189.0kgf (Min)
    AWG#206.0kgf (Min)
    AWG#224.0kgf (Min)
    AWG#243.0kgf (Min)
    5-3Terminal Insertion Force.Insert the crimped terminal into the housing.1.50kgf (Max.)
    5-4Terminal/Housing Retention Force.Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.3.00kgf (Min.)
    5-5Pin Retention ForceApply axial push force at the speed rate of 25±3mm / minute3.00kgf (Min.)
    5-6Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of
    25±3mm / minute

    7.0kgf (Min.)
    5-7Panel Mount Retention ForceInsert the housing into panel cut out, push housing opposite the way it was assembled until the locking barbs break at the speed rate of 25±3mm / minute.16.0kgf (Min.)
    5-8DurabilityWhen mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.Contact Resistance 20mΩ (Max.)
    5-9Vibration

    Amplitude: 1.5mm P-P
    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.
    Contact Resistance 20mΩ (Max.)
    Discontinuity 1 μsec.(Max.)

    5-10Physical Shock490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JISC0041/MIL-STD-202 Method 213B Cond. A)
