| Place of Origin: | Dongguan, China(mainland) |
| اسم العلامة التجارية: | HRT |
| إصدار الشهادات: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A1505H-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| الأسعار: | USD0.001 to 0.5 per pcs |
| Packaging Details: | bag with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Color: | White;Black | Pitch: | 1.50mm |
|---|---|---|---|
| Circuits: | 6pins | Wire range: | AWG24# to 30# |
| Suitable terminals: | A1505T series | Mating lock: | None |
| تسليط الضوء: | Male Header Connectors,6 Pin Connector,6 Pin Connector |
||

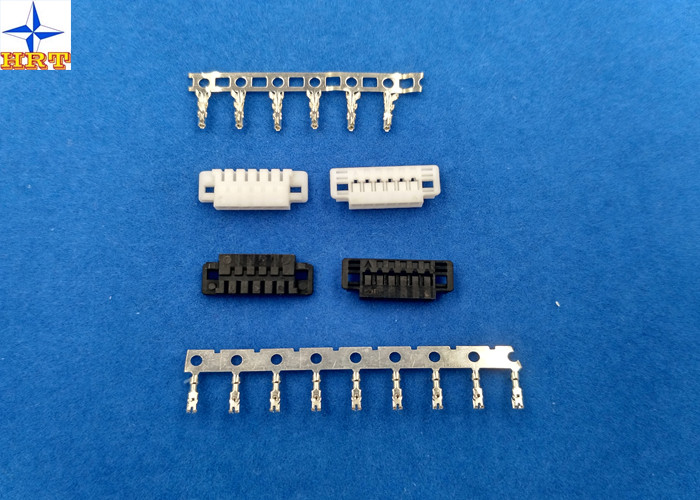

battery terminal connectors with 1.5mm pitch wire housing HRT brand A1505H-NP
1, Specification of the product
| Basic size information | |||
| Flammability | UL94V-0 | ||
| Terminal material | phosphor bronze; gold-flashed | ||
| Row | Single | ||
| Material | Nylon66 | ||
| Wire Insulation Diameter | 1.20mm Max. | ||
| Part No. | A1505H-06P | ||
| Electrical properties | |||
| Current Rating | 3A AC, DC | ||
| Voltage Rating | 50V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 500mΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Insulation Resistance 50MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
| 6-9 | Solderability |
Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃ |
Solder Wetting 95% of immersed area must show no voids, pin holes |
| 6-10 |
Resistance to Soldering Heat (DIP) |
Solder pot method Soldering time: 10±0.5 sec. Solder Temperature: 260±5℃ Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ |
Appearance No Damage. |
| 6-11 | Resistance to Soldering Heat (SMT) |
When reflowing Refer to paragraph 8 Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ |
Appearance No Damage. |
