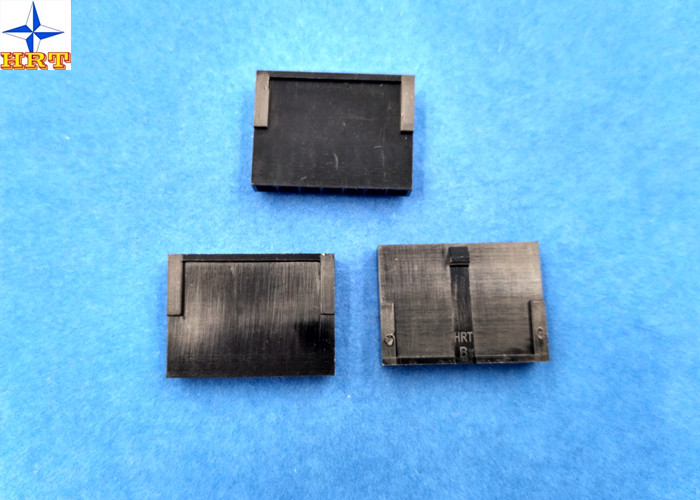

3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze

3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze

    • 3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze
    • 3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze
    • 3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze
  • 3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze

    تفاصيل المنتج:

    Place of Origin: Dongguan, China(mainland)
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C3030HMA-NP

    شروط الدفع والشحن:

    Minimum Order Quantity: 5000 pcs
    الأسعار: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Color: Black Application: Power, Wire-to-Wire
    Materials: PA66 Wire range: AWG24# to 20#
    Matched housing: C3030HF series single row Mated terminals: C3030M-T
    تسليط الضوء:

    Wire To Wire Connector,Female Header Connector

    ,

    Female Header Connector

    1, Detailed part information as below

    1. Basic information:

    • Color: Black
    • Housing Material: Nylon66
    • Flammability: 94V-0/2
    • Pitch: 3.00mm
    • Circuits: 2 to 12 positions
    • Insulation O.D.: 1.85mm max
    • Mounting type: wire to wire
    • Application: Power, wire to wire
    • Terminal materials: Phosphor bronze
    • Finish terminal: Tin-plated or gold-flash
    • Terminal Package: 10Kpcs/reel
    • Suitable terminal: C3030M-T
    • Mates housing: C3030HF series Single row
    • Terminal processing method: E-stamping before tin-plated



    2. Electrical characteristic:

    • Current Rating: 5A AC DC
    • Voltage Rating: 250V AC, DC
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000mΩ
    • Withstanding Voltage: 1500V AC/minute



    3. Mechanical characteristic:

    • ​​Temperature Range:-25°C ~+85°C
    • Terminal Insertion Force: 1.50kgf (Max.)
    • Terminal/Housing Retention Force: 2.50kgf (Min.)
    • Pin Retention Force: 1.50kgf (Min.)
    • Latch Yield Strength: 7.0kgf (Min.)

                   Other information please kindly check the following picture.




    2, Introduction for this series products

    Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.

                                                                 C3030 series product
      Terminal C3030F-T-A and C3030M-T

      Connector Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
    Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP




    Wafer


    Vertical type C3030WV-F-NP &C3030WV-F-2XNP
    Right angle type C3030WR-F-XP & C3030WR-F-2XNP




    3, Corresponding engineering drawing & testing report

    3.0mm Pitch Single Row Female Power Connectors Female Housing With Phosphor Bronze

    Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Insulation Resistance 100MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3



    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#20 6.0kgf (Min.)
    AWG#22 4.0kgf (Min.)
    AWG#24 3.0kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 2.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    7.00kgf (Min.)
    5-7 Panel Mount Retention Force Insert the housing into panel cut out, barbs break at the speed rate of 25±3mm / minute.

    Single Row(W-W) 8.0kgf (Min.)

    Dual Row(W-W) 16.0kgf (Min.)

    5-8 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
