مكان المنشأ: | Dongguan, China(mainland) |
اسم العلامة التجارية: | HRT |
إصدار الشهادات: | ISO9001/ ISO14001/UL/RoHS/REACH |
رقم الموديل: | A1254H-NP |
الحد الأدنى لكمية: | 5000 pcs |
---|---|
الأسعار: | negotiated |
تفاصيل التغليف: | Bag with outside carton |
وقت التسليم: | 5 to 8 working days after payment checked |
شروط الدفع: | TT, Western Union, PayPal, L/C |
القدرة على العرض: | 500 K pcs per month |
محطات مناسبة: | سلسلة A1254T | رقاقة مناسبة: | سلسلة A1254W |
---|---|---|---|
طريقة إنهاء السلك: | العقص | مجموعة الأسلاك: | AWG28 # إلى 32 # |
الدوائر: | 2 دبابيس إلى 30 دبابيس | صف: | أعزب |
تسليط الضوء: | موصلات لوحة الدوائر المطبوعة,موصلات Pcb سلك بلوحة,موصلات سلك لوحة دوائر كهربائية Molex 51146 |

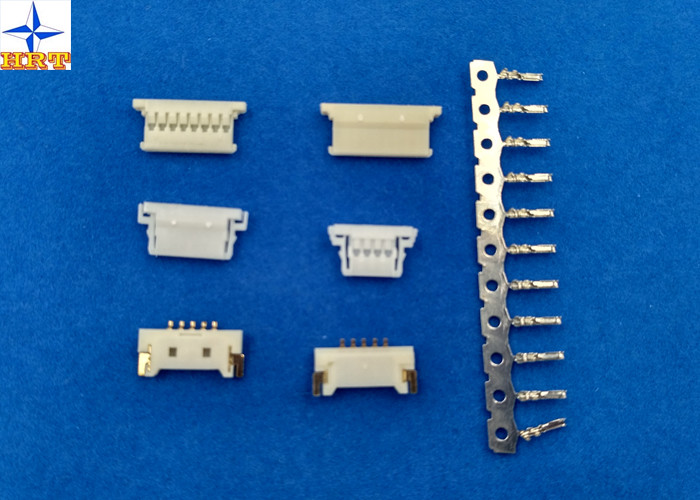

1, The specification of the product including basic size information, electrical and mechanical properties.
Basic size information | |||
Color | White | ||
Pitch | 1.25mm | ||
Mating lock | without | ||
Material | PA66 | ||
Flammability | UL94V-0 | ||
Wire Insulation Diameter | 1.00mm Max. | ||
Mounting side | Standard on-Board | ||
Terminals material | phosphor bronze, tin-plated/gold-flash finish | ||
Electrical properties | |||
Current Rating | 1A AC, DC | ||
Voltage Rating | 150V AC, DC | ||
Contact Resistance | 30mΩ Max | ||
Insulation Resistance | 500mΩ min | ||
Withstanding Voltage | 500V AC/minute | ||
Mechanical properties | |||
Operating Temperatureemperature range | -25℃ to 85 ℃ | ||
Other information please kindly check the following picture. |
2, Drawings & testing report
3. Ratings & Applicable Wires
*: Including terminal temperature rise
4. Electrical Performance
5. Mechanical Performance
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6. Environmental Performance And Others
7. Actuator Insertion/Withdrawal Force [Unit : kgf]
|
3, FAQ
Q:Do you allow multiple design per setup?
A:Yes.We accept OEM service and allow multiple design per setup.
Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed world, delivery by Fed x/UPS/DHL is normally 3-5 days(excluding weekends).
Q: How is the goods packaged ?
A: Usually in bags, tube, pipe, plated & carton
