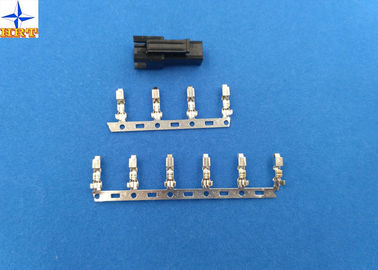

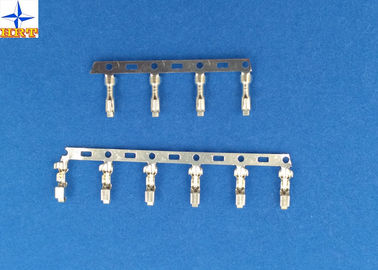

tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals

الصين tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals المزود
tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals المزود tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals المزود tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals المزود

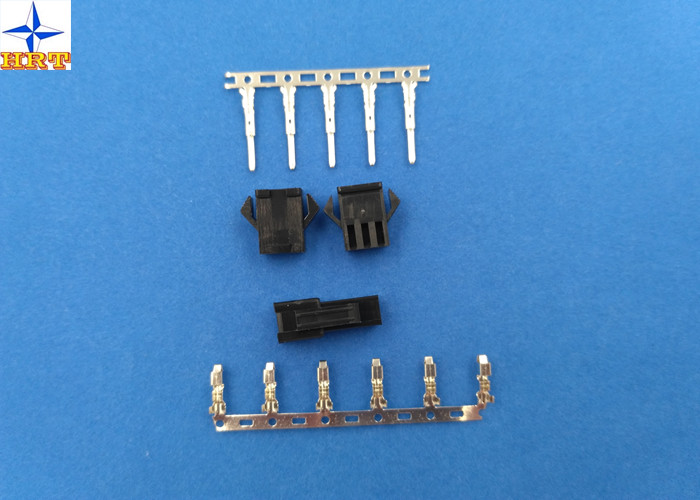

صورة كبيرة :  tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals

تفاصيل المنتج:

Place of Origin: dongguan, China(mainland)
اسم العلامة التجارية: HRT
إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: C2505F-T

شروط الدفع والشحن:

Minimum Order Quantity: 75K PCS
الأسعار: Negotiated
Packaging Details: paper tray with out carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 100 million pcs per month
مفصلة وصف المنتج
Pitch: 2.50mm wire range: AWG#22 - #28
Material: Phosphor Bronze Finish: Tin-plated
Connector Type: wire connnector Terminal Insulation O.D: 1.80mm(Max)
تسليط الضوء:

Crimp Terminal Connector,Connector Crimp Terminal

,

Connector Crimp Terminal

AWG#22 - 28 Ptich 2.50mm Wire Connector Terminals C2505F-T 1500V AC / Minute



1, The specification of the product including basic size information, electrical and mechanical properties.



Basic size information
Termination Interface Style crimp or compression
Processing methods E-stamping before tin-plated
Insulation O.D. 1.80mm(Max)
Part No. C2505F-TPE
Application signal

Electrical properties
Current Rating 3A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 500mΩ min
Withstanding Voltage 1500V AC/minute

Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.






2, Related drawing and report



The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

tin-plated phosphor bronze terminals, 2.5mm pitch P/N SM crimp connector terminals



Testing report



1. Scope

This specification covers the requirements for product performance of 2.50mm pitch wire to wire

connectors series.





2. Construction,Dimensions,Material & Plating

See the attached drawings





3. Ratings & Applicable Wires



Item Standard
Rated Voltage (Max.) 250V AC/DC Insulation O.D. 1.80mm (Max.)
Rated Current (Max.) And Applicable Wires AWG#22 3.0A AC/DC
AWG#24 2.5A AC/DC
AWG#26 2.0A AC/DC
AWG#28 1.5A AC/DC
Ambient Temperature Range -25℃ ~ +85℃*

*: Including terminal temperature rise





4. Electrical Performance



Test Description Procedure Requirement
4-1



Contact Resistance



Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 500MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)





5. Mechanical Performance



Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0 kgf (Min.)
AWG#24 3.0 kgf (Min.)
AWG#26 2.0 kgf (Min.)
AWG#28 1.0 kgf (Min.)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50 kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50 kgf (Min.)
5-5 Latch Yield Strength Mate connectors and pull apart until latch break at the speed rate of 25±3mm / minute 2.00 kgf (Min.)
5-6 Panel Mount Retention Force Insert the housing into panel cut out, push housing opposite the way it was assembled until the locking barbs break at the speed rate of 25±3mm / minute 7.00 kgf (Min.)
5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-8 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Discontinuity 1 μsec.(Max.)

5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





6. Environmental Performance And Others



Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Insulation Resistance 50MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3

6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.

6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.



7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial
Insertion (Max.) Withdrawal (Min.)
Single 1.20 0.08
02 2.00 0.10
03 2.50 0.15
04 3.00 0.20
05 3.50 0.25
06 4.00 0.30
07 4.50 0.35
08 5.00 0.40
09 5.00 0.45
10 5.50 0.50
11 5.50 0.55
12 6.00 0.60





3, FAQ


Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.
