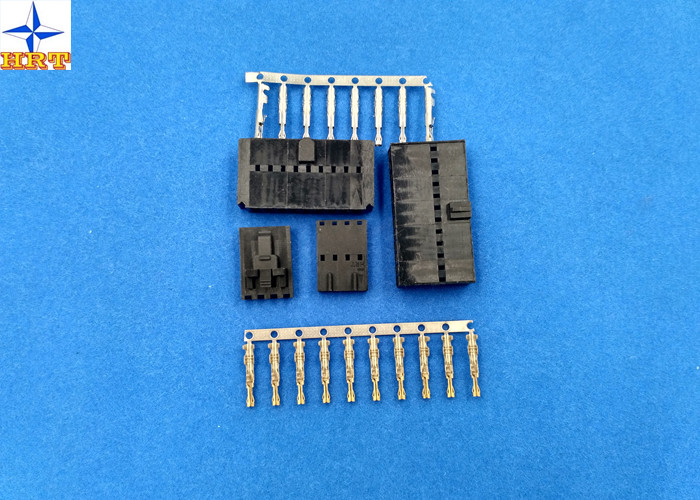

Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact

Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact

    • Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact
    • Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact
    • Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact
  • Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact

    تفاصيل المنتج:

    Place of Origin: dongguan,China(mainland)
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2541-T-M

    شروط الدفع والشحن:

    Minimum Order Quantity: 75K pcs
    الأسعار: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 100 million pcs per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Pitch: 2.54mm wire range: AWG #22 - #28
    Material: Phosphor Bronze Finish: Tin-plated or Gold-flash
    Connector Type: wire connnector Terminal Insulation O.D: 1.70mm(max)
    تسليط الضوء:

    Crimp Terminal Connector,Connector Crimp Terminal

    ,

    Connector Crimp Terminal

    Description:



    1. Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated ,Tin-plated we calling A2541-TPE-M,and Gold-flash we calling A2541-GPE-M. Minimum packing quantity is 10,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

    2. Terminals' wire range :AWG #22--#28,insulation OD is 1.70mm(Max).



    Quality:

    The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE

    7. Active Environmental policy

    8. Every module tested 3 times (not just batch tested)





    Test Description Procedure Requirement
    Contact Resistance Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



    Electrical:



    Current rated
    3A AC/DC maximum
    Voltage rated 250V AC/DC
    Withstand voltage 1500V AC/minute
    Insulation resistance 1000MΩ min
    Contact resistance 20MΩ max
    Operating temperature -25 - 85°C



    Drawing:



    Gold-Flash Wire Connector Terminals, 2.54mm RoHS Compliance Crimp Terminals, tin-plated contact



    Service:



    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support

    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.

    3. Free Samples:3-5 PCS of each part number

    4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    5. Customer complaint:24-48 hours reply 8D report

    6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

    7. kits if customers are not satisfied)
