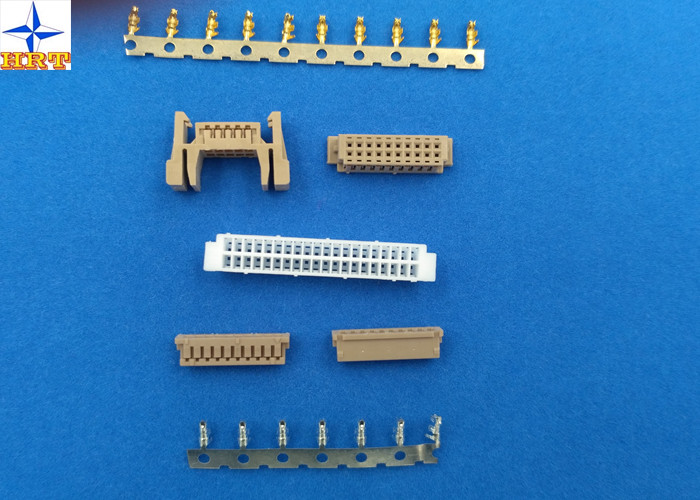

DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26

DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26

    • DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26
    • DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26
    • DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26
  • DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1252-T

    شروط الدفع والشحن:

    Minimum Order Quantity: 75KPCS
    الأسعار: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Mounting Side: Standard on-Board Pitch: 1.25mm
    Wire range: AWG#26-#30 Material: Phosphor Bronzne
    Finish: Tin-plated or Gold-flash Fire-protection rating: UL 94V-0
    Wire Termination Method: Crimping Insulation O.D: 1.00mm(Max)
    تسليط الضوء:

    Crimp Terminal Connector,Crimp Wire Connectors

    ,

    Crimp Wire Connectors



    Specifiaction:
    Category: Crimp Terminals
    Series:A1252-TPE-A or A1252-GPE-A
    Application:Signal
    Material :Phosphor Bronze
    Finish:Tin-plated or Gold-flash
    Packaging Type: Reel
    Termination Interface Style: Crimp or Compression
    Wire Insulation Diameter:1.00mm(max)

    Electrical & Mechanical information:
    Current Rating: 1A AC, DC
    Voltage Rating: 150V AC, DC
    Contact Resistance: 30mΩ Max
    Insulation Resistance:500MΩ Min
    Withstanding Voltage: 500V AC/minute

    Temperature range: -25℃ to 85 ℃



    Ordering Information:

    Part No. Wire Range Insulation O.D. Material Finish Qty/reel
    A1252-TPE-A AWG26#-30# 1.00mm(Max) Phosphor Bronze Tin-plated  15Kpcs/reel
    A1252-GPE-A Gold-flash
    Note: E-stamping before tin-plated or Gold-flash



    Drawing & testing report:

    Please kindly check the following information to order right products.

    DF13 wire to board connector terminals tin-plated Crimping Connector for Discrete wire AWG 30 to 26



    1. Scope

    This specification covers the requirements for product performance of 1.25mm pitch wire to board

    connectors series.





    2. Construction,Dimensions,Material & Plating

    See the attached drawings





    3. Ratings & Applicable Wires



    Item Standard
    Rated Voltage (Max.) 150V AC/DC Insulation O.D. 1.00mm (Max.)
    Rated Current (Max.) And Applicable Wires AWG#26 1A AC/DC
    AWG#28 1A AC/DC
    AWG#30 1A AC/DC
    Ambient Temperature Range -25℃ ~ +85℃*

    *: Including terminal temperature rise



    4. Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 30mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 500MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#26 2.0kgf (Min)
    AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 60mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    Insulation Resistance 50MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10

    Resistance to Soldering Heat

    (DIP)

    Solder pot method

    Soldering time: 10±0.5 sec.

    Solder Temperature: 260±5℃

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.
    6-11 Resistance to Soldering Heat (SMT)

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Actuator Insertion/Withdrawal Force

    DIP&Single Row SMT [Unit : kgf] Dual Row SMT [Unit : kgf]

    Circuits At Initial   Circuits At Initial
    Insertion (Max.) Withdrawal (Min.)   Insertion (Max.) Withdrawal (Min.)
    Single 0.30 0.03   Single 0.30 0.03
    02 2.00 0.50   2X05 3.50 0.90
    03 2.50 0.55   2X06 4.10 1.00
    04 3.00 0.60   2X07 4.70 1.10
    05 3.50 0.65   2X10 6.50 1.40
    06 4.00 0.70   2X15 9.50 1.90
    07 4.50 0.75   2X18 11.30 2.10
    08 5.00 0.80   2X20 12.50 2.40
    09 5.50 0.85   2X25 15.50 2.90
    10 6.00 0.90
    11 6.50 0.95
    12 7.00 1.00
    13 7.50 1.05
    14 8.00 1.10
    15 8.50 1.15
