موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #

الصين موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 # المزود
موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 # المزود موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 # المزود موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 # المزود

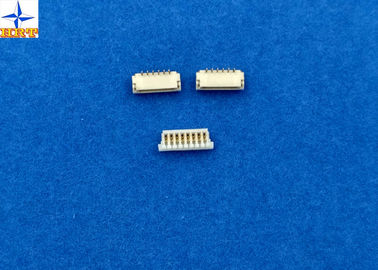

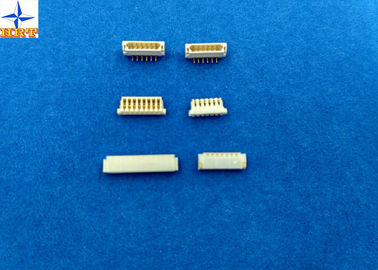

صورة كبيرة :  موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #

تفاصيل المنتج:

Place of Origin: Dongguan, China(mainland)
اسم العلامة التجارية: HRT
إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A0800HI

شروط الدفع والشحن:

Minimum Order Quantity: 5000pcs
الأسعار: negotiated
Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28000K pcs per month
مفصلة وصف المنتج
فئة: الإسكان القابلية للاشتعال: 94 فولت -0
مجموعة الأسلاك: AWG32 # & 36 # جنس: وعاء
طلب: إشارة ، سلك إلى لوحة
تسليط الضوء:

موصلات أسلاك إزاحة العزل

,

موصل رأس Idc

,

موصل إزاحة العزل SUR

0.8mm Pitch Insulation Displacement Connector Housings With LCP Material A0800



1, Detailed specification:



        1. Basic information:

  • Color: light-yellow
  • Row No.: single
  • Circuits: 2pin to 22pin
  • Plated:Gold-plated
  • Insulation O.D.: 0.39mm
  • Matched parts: A0800 series wafer
  • Housing Material: LCP(Halogen free); standard PA46
  • Contacts Material: phosphor bronze/tin-plated
  • Mounting Type: Surface Mount

        2. Electrical characteristic:

  • Current Rating: 0.5A AC, DC(AWG#30); 0.2A AC, DC(AWG#36)
  • Voltage Rating: 30V AC, DC
  • Contact Resistance: 20mΩ Max
  • Insulation Resistance: 100mΩ
  • Withstanding Voltage:  200V AC/minute

        3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C



                            Other detailed data please check the below pictures.


 2, Related engineering drawing and testing report



The attached picture is our standard engineering drawing and report for your reference, it will help you to

know our product feature, then you can choose the right models.

موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #

موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #

موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #

موصل إزاحة عزل الملعب 0.8 مم ، موصل SUR لـ AWG32 #









3. Ratings & Applicable Wires



Item Standard
Rated Voltage (Max.) 30V AC/DC Insulation O.D. 0.38mm (Max.)
Rated Current (Max.) And Applicable Wires AWG#32 0.5A AC/DC
Ambient Temperature Range -25℃ ~ +85℃

*: Including terminal temperature rise





4. Electrical Performance



Test Description Procedure Requirement
4-1



Contact Resistance



Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 100MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 200V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



5. Mechanical Performance



Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Wire pull Out Force Pulling load shall be applied to a correctly terminated wire in parallel and perpendicular directions. The load to pull the wire out of the socket or break the wire shall be measured. Parallel direction Perpendicular direction
0.30 kgf(Min.) 0.15 kgf(Min.)
5-3 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.25kgf (Min.)
5-4 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.25kgf (Min.)
5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-6 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)

5-7 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





6. Environmental Performance And Others



Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 10MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3

6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.

6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.



6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

When reflowing

Refer to paragraph 8

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

Appearance No Damage.



7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
02 0.50 0.10 14 1.70 0.34
04 0.70 0.14 15 1.80 0.36
08 1.10 0.22 16 1.90 0.38
10 1.30 0.26 17 2.00 0.40
12 1.50 0.30 20 2.30 0.46
