1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP

نوعية جيدة الأسلاك إلى موصلات المجلس للمبيعات
نوعية جيدة الأسلاك إلى موصلات المجلس للمبيعات
I could not believe the product was delivered today, that was quick. Yes, it does fit the board socket as intended.

—— Craig

The flexible MOQ & fast delivery makes me impressive

—— Oleg

the factory is wonderful, it's very clean & tidy, well done in 5S management.

—— Greg Cho

The product are wonderful. The sample is delicered very fast.

—— Peter Svedmyr

ابن دردش الآن

1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP

الصين 1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود
1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود 1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود 1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود 1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود 1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP المزود

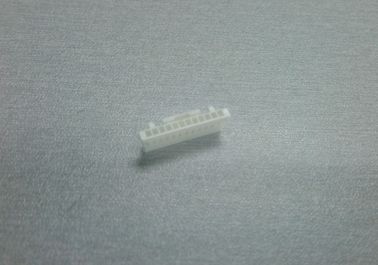

صورة كبيرة :  1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP

تفاصيل المنتج:

Place of Origin: Dongguan, China(mainland)
اسم العلامة التجارية: HRT
إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1253HA-NP

شروط الدفع والشحن:

Minimum Order Quantity: 5000 pcs
الأسعار: negotiated
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 500 K pcs per month
مفصلة وصف المنتج
Color: white Pitch: 1.25mm
Material: PA66 Wire range: AWG26# to 32#
Flammability: UL94V-0 Row: single
تسليط الضوء:

Connector Wire To Board,Board To Wire Connectors

,

Board To Wire Connectors



1, The specification of the product including basic size information, electrical and mechanical properties.



  Basic size information
Suitable terminals A1253T-A series
Suitable wafer A1253WRA series
Pitch 1.25mm
Mating lock with
Connector orientation straight
Circuits 2pins to 30pins
Wire Insulation Diameter  1.00mm Max.
Connector type socket
Terminals material phosphor bronze, tin-plated or gold-flash finish

                                                          Electrical properties
Current Rating 1A AC, DC
Voltage Rating 150V AC, DC
Contact Resistance 30mΩ Max
Insulation Resistance 500mΩ min
Withstanding Voltage 500V AC/minute

                                                          Mechanical properties
Operating Temperatureemperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.



2, Related drawing and report

1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP

1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP

1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP


3, Application fied of these product



This product is developed for PDP, LCD or small electronics equipment.This product are widely used in household appliance, computer, communication device. Because we can controll NPL ratio under a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.



4, we can offer various fast delivery way for you .



1.25mm wire housing with nose wire to board connector with Max 30pins circuits A1253HANP



We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
