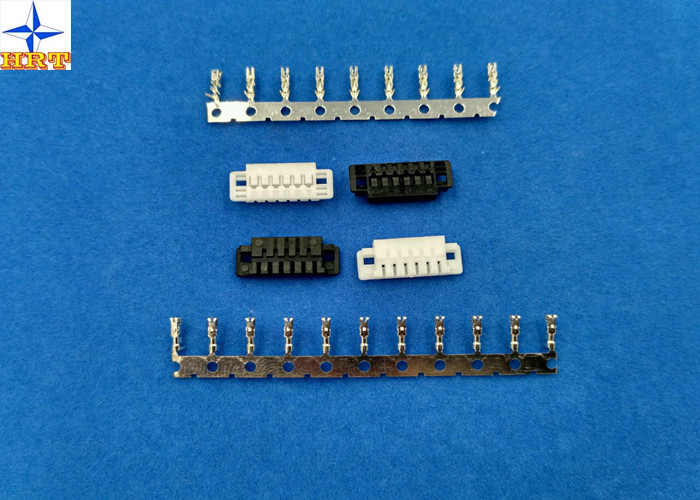

1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

    • 1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector
    • 1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector
    • 1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector
  • 1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

    تفاصيل المنتج:

    Place of Origin: Dongguan, China(mainland)
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1505H-NP

    شروط الدفع والشحن:

    Minimum Order Quantity: 5000 pcs
    الأسعار: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Color: White;Black Pitch: 1.50mm
    Circuits: 6pins Wire range: AWG24# to 30#
    Suitable terminals: A1015T series Mating lock: None
    تسليط الضوء:

    PCB Battery Connector,6 Pin Connector

    ,

    6 Pin Connector



    1, Specification of the product



      Basic size information
    Flammability UL94V-0
    Terminal material phosphor bronze; gold-flashed
    Row Single
    Material Nylon66
    Wire Insulation Diameter  1.20mm Max.
    Part No. A1505H-06P

                                                              Electrical properties
    Current Rating 3A AC, DC
    Voltage Rating 50V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 500mΩ min
    Withstanding Voltage 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.



    2, Related drawing and report

    Wish the following drawing & test report can help you to get our right parts.

    1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

    1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

    1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector

    1.5mm Pitch Battery Connectors with Tin-plated terminals 6 Poles Crimp Wire to Board Connector



     Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#24 1.5kgf (Min)
    AWG#26 1.0kgf (Min)
    AWG#28 0.8kgf (Min)
    AWG#30 0.5kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.80kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.30kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



    Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial
    Insertion (Max.) Withdrawal (Min.)
    Single 0.30 0.10
    04 1.70 0.30
    05 2.15 0.40
    06 2.60 0.50
    07 3.05 0.60
    08 3.50 0.70
    09 3.95 0.80
    10 4.50 0.90
    11 4.95 1.00
    12 5.50 1.10



    3, Our service



    Please kindly check the following informaion, it will help you to pay money and get right parts in a short time.



    - Payment Terms: Paypal, Western Union, Money Gram, T/T


    - Warranty: 100% quality tested, 12 months guarantee, 1:1 replacement for faulty goods, defective rate<1%


    - Lead Time: 3-7 working days for normal orders


    - Shipping: express or by sea


    - Free sample order and customized designs are available.
