Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22

Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22

    • Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22
    • Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22
    • Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22
  • Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22

    تفاصيل المنتج:

    Place of Origin: China
    اسم العلامة التجارية: HRT
    إصدار الشهادات: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A3800

    شروط الدفع والشحن:

    Minimum Order Quantity: 5000 PCS
    الأسعار: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 15000 pcs per day
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج

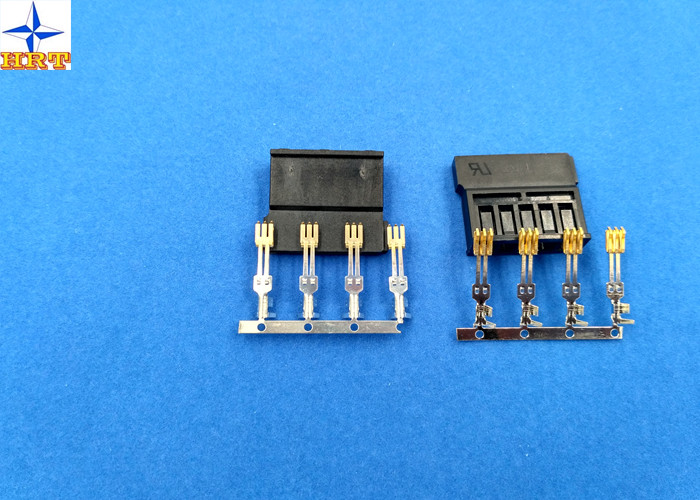

    Product Name: A3800H-15P, A3800-GPE-A Pitch: 1.27mm
    The Number of pin: 15 PIN Material: HSG:PBT;TER: Phosphor Bronze, Gold-plated
    Row: Single Application: Computer ,power



    Pitch 1.27mm wire to bard ATA .SATA connectors housing / terminal



    Description:



    1. Housings’ materials: PBT, Black, Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag. The daily production capacity is 30 to 50 KPCS.

    2. Terminals are stamped by Phosphor Bronze, E-Stamping before Gold-plated , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 200 KPCS.

       3. Terminals' wire range :AWG #18--#22,insulation OD is2.1mm(Max).



    Specifications:





    Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22Home Appliances Phosphor Bronze ATA SATA Connectors 15PIN Pitch 1.27mm AWG#18 - 22
