تفاصيل المنتج:
شروط الدفع والشحن:
|
| Product Name: | C7200 housing | Pitch: | 7.20mm |
|---|---|---|---|
| The Number of pin: | 2PINS | Material: | HSG: PA66 TER: Brass Tin-plated |
| Row: | Single | Application: | Battery |
| تسليط الضوء: | PCB Battery Connector,6 Pin Connector,6 Pin Connector |
||

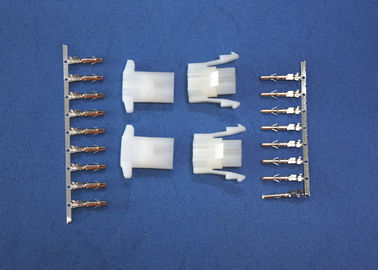

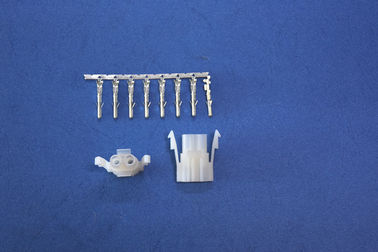

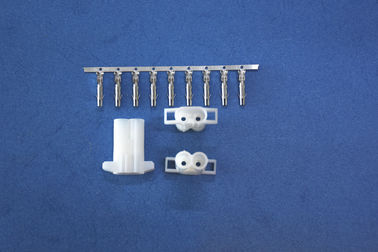

Pitch 7.20mm wire to wire battery terminal connector fmale or male housing
Description:
1,C7200series is divided into C7200HF-2P (single row male housing suitable C5080Fseries terminal) C7200HM-2P,single row female housing suitable C5080Mseries terminal ) Terminal:C5080F-TPE(used inC7200HF series housings)C5080M-TPE(used in C7200HM).
2, Housing s’ materials: PA66, Fire-protection rating are both UL 94-V2. Minimum packing quantity is 500pcs/bag.
3.Housing we have only 2Pin,The daily production capacity is 20 to 30 KPCS.
4.Terminals are stamped by Brass, E-Stamping before Tin-plated ,Tin-plated we calling C5080-TPe, Minimum packing quantity is 4,000pcs/Reel. The daily production capacity is 200 to 300 KPCS.
5.Terminals' wire range :AWG #18--#24 and AWG#14#20,insulation OD is2.5mm(Max) and3.3mm(Max).
